Q1: How does your production process ensure that the acoustic insulated glass effectively eliminates the coincidence dip?

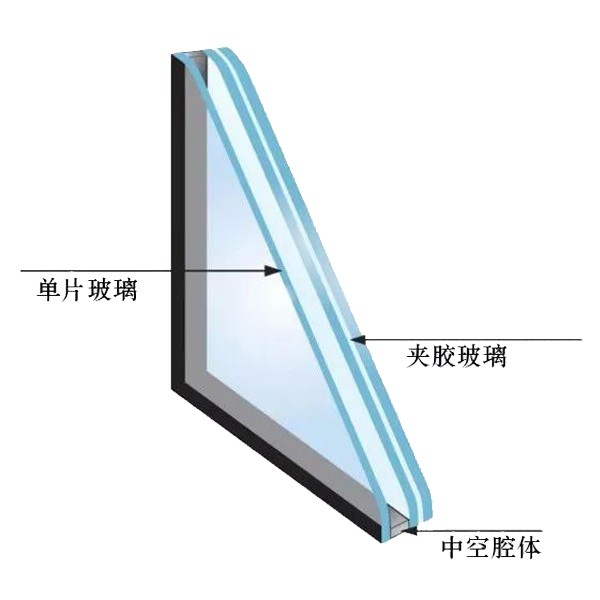

A: From a manufacturing perspective, we address the coincidence frequency through precise structural customization. Instead of standard monolithic panes, our production lines specialize in fabricating asymmetric insulated glass (combining different glass glass thicknesses, such as 6mm and 4mm) and integrating an acoustic PVB interlayer. This specific combination alters the natural vibration resonance of each pane, allowing the finished soundproof insulated glass to minimize acoustic weak points across critical mid-to-high frequency ranges.
Q2: Why should we specify an Acoustic PVB interlayer over standard PVB for our facade glazing projects?

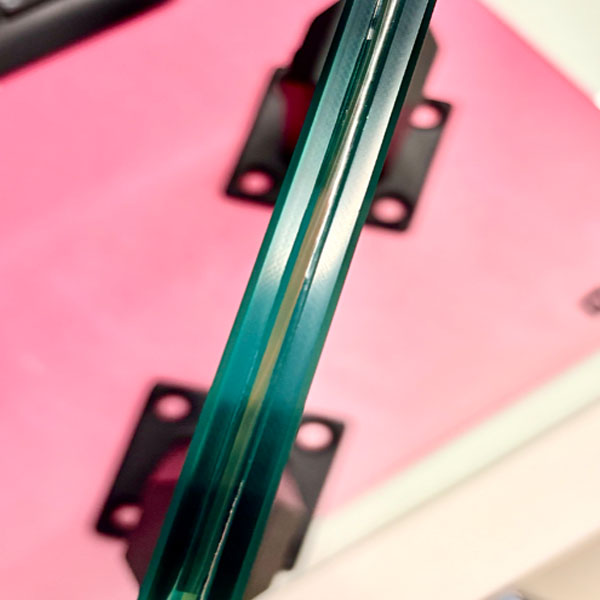

A: While standard PVB provides basic safety bonding, an acoustic laminated glass configuration utilizes a specialized, high-damping resin core designed specifically for sound attenuation. In our laminating cleanroom, we process PVB(A) interlayers that act as a shear-damping core to absorb vibrational energy. When integrated into a noise-reduction IGU, this technology typically yields an improvement of several decibels in STC / Rw ratings compared to standard PVB configurations, making it highly effective against sharp urban and traffic noises.
A: Acoustic performance relies heavily on the depth and quality of the cavity. We optimize our fully automated sealing lines to offer wide cavity options (up to 16mm) utilizing high-performance warm edge spacers to break physical thermal bridges. For projects requiring both elite acoustic mitigation and strict U-values, we offer automated argon gas filling. The density of argon slows down sound wave propagation through the unit while simultaneously reducing center-of-glass heat transfer, providing an ideal balance for premium soundproof windows and doors.
Q4: Are your acoustic IGUs compatible with structural sealant glazing (SSG) for high-rise acoustic curtain walls?
A: Yes. Our production engineering ensures full material and structural compatibility with structural sealant glazing (SSG) systems. During the processing of laminated insulated glass, we maintain strict tolerance controls on edge step-outs, primary butyl extrusion, and secondary structural silicone application. This rigorous quality control ensures that our sound-insulating glass handles both the static structural demands of a modern acoustic curtain wall and the necessary dynamic wind-load resistance without compromising the perimeter acoustic seal.
A: We base our product data on rigorous laboratory testing and established simulation models (such as glass performance calculation software). Because physical acoustic performance is heavily dependent on the overall window frame design, installation methods, and edge sealing, we focus our production quality control on component traceabilities—ensuring precise glass thickness variance, certified interlayer thickness, and verified argon gas concentrations. We provide technical data sheets with estimated STC (Sound Transmission Class) and Rw (Weighted Sound Reduction Index) metrics to help facade engineers achieve their target acoustic budgets.
